Flow

Badger Meter

    Flow Measurement and Control Solutions

    Badger Meter is a leading marketer and manufacturer of products using flow measurement and control technologies developed both internally and with other technology companies. Its products are used to measure and control the flow of liquids in a variety of applications.

  • M-Series® Electromagnetic Flow Meters - Whether it’s improving accuracy, decreasing system maintenance or meeting the demands of challenging liquid conditions, Badger Meter electromagnetic meters deliver the performance your critical flow measurement applications require.

  • Mechanical Meters - RCDL Nutating Disc Meters, Recordall Turbo Series Meters, Industrial Turbo Meters, Oscillating Piston Meters, Industrial Oval Gear Meters, & Recordall Compound Series meters.

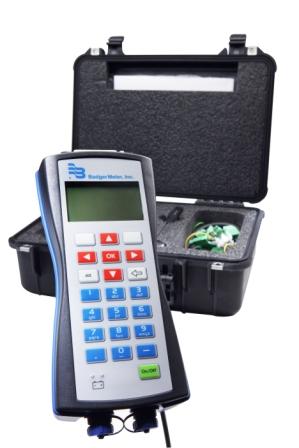

Electro-Magnetic Flowmeters    M-2000 Magnetic Flowmeter    Field Verification Device    Mechanical Meters



Dynasonics

  • Transit Time Ultrasonic Flow Meters - Non-invasive meters with superb accuracy and response characteristics. Intended for clean liquids.

  • Doppler Ultrasonic Flow Meters - For liquids with a minimum of 100 PPM of 100 micron size suspended solids or aeration.

  • Hybrid Ultrasonic Flow Meters - Utilizes both Doppler and transit time ultrasonic sound techniques and automatically selects the correct technology to accurately measure the volumetric flow of clean, solids-bearing or gaseous liquids on full pipes.

Portable Hybrid    Transit Time    Dynasonics Ultra    Dynasonics TFXL    Dynasonics UFX



Sage Thermal Mass Flowmeters

Sage Metering is an innovative manufacturer of the high-performance natural gas flow meter and thermal mass flow meters for gas flow measurement. The company has brought to market the first thermal mass flow meter to utilize graphical displays, a hybrid digitally driven circuit and the industry’s first in-situ calibration verification system. These state-of-the-art award–winning features deliver the highest performance, reliability and confidence for any thermal flow meter user.

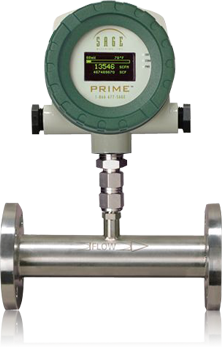

Prime         Rio   300 Series



Coriolis Mass Flowmeters

The Badger Meter RCT1000 Coriolis Mass Flow Meter identifies flow rate by directly measuring fluid mass over a wide range of temperatures with a high degree of accuracy. For fluids consisting of two liquids or gases, the RCT1000 Coriolis system can derive the concentration and mass of each fluid based on the density measurement. Its unobstructed, open-flow design makes it suitable for a variety of fluids such as slurries and other viscous, nonconductive fluids that are difficult to measure with other technologies.

Coriolis Mass Flowmeters



Cox Instruments

COX Instruments has provided hundreds of thousands of quality precision turbine flowmeters contributing to the success of major industries, such as, automotive, aerospace, test & measurement, metrology, process control and manufacturing. This heritage of providing the best value turbine flowmeter and flow sensing products, demonstrates both our superior performance and long term commitment to the industries that depend on quality precision flow measurement.

Industrial Turbine Flowmeters         Precision Turbine Flowmeters         Flow Computers



Racine Vortex

Racine vortex flow meters utilize ultrasonic technology to measure tiny vortices that form when media in the pipe move across a strut, or "bluff bar". The number of vortices formed is directly proportional to flow rate, and the resulting product is a flow meter with high turndown ratio (up to 70:1) and high accuracy (+/- 1% of reading). The Racine vortex meter has benefited from over two decades of research and development. With no moving parts, smart electronics, and HART communications, the Racine vortex flow meter is an excellent choice for process plants and refineries measuring liquids, gases and steam.

Racine Vortex                 Racine Vortex Plastic



Preso

Preso manufactures a complete line of precision engineered primary flow elements including the innovative Ellipse® Averaging Pitot, Venturi, Coin Segmented Wedge, and Gemini Cone flow meters. With this array of products, Preso can provide a meter for any process that can be measured with differential pressure technology, often at calibrated accuracies of better than +/- 0.5%. Preso also manufactures the B-Plus® and C+ lines of metering, balancing and connection valves for the HVAC industry.

Preso Elipse Averaging Pitot Meter   Preso Venturi DP Meter   Preso Coin Segmented Wedge Meter   Preso Gemini Cone DP Meter

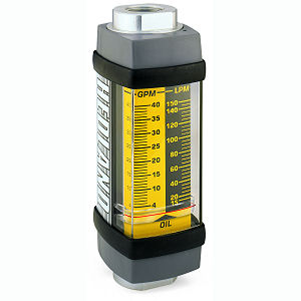

Hedland         Hedland SS         Hedland EZ-View

Hedland flow meters are the industry standard. The product line includes over 15,000 in-line variable area flow meters manufactured of aluminum, brass or stainless steel for fluids, water, compressed air and many other liquids and gases. Meters are available as a visual-only gauge, flow switch, or as an advanced flow transmitter with digital display and analog output. The rugged in-line variable area meters can be installed at any angle and perform at +/- 2% full scale accuracy. High pressure and high temperature models are available. The Hedland line also includes the EZ-View® in-line variable area polysulfone flow meters and flow switches for liquids.



Blancett         Blancett Turbine Meter         Blancett Flo Clean 3A

Blancett fluid flow meters are designed with stainless steel and tungsten carbide components. This rugged line of turbine meters is ideal for harsh industrial applications, including secondary oil recovery. These products are also well-suited for the semiconductor and chemical processing industries, applications with high corrosive, temperature and pressure environments, and applications requiring 3-A sanitary certified equipment. Electronic options including magnetic pickups, rate and totalizer displays, enable the meter to interface with most computers and PLCs.



Impeller Flowmeters

Impeller products are used to measure liquids in a variety of industrial and commercial markets. These solutions comprise data acquisition and data management products including sensors, monitors and transmitters.

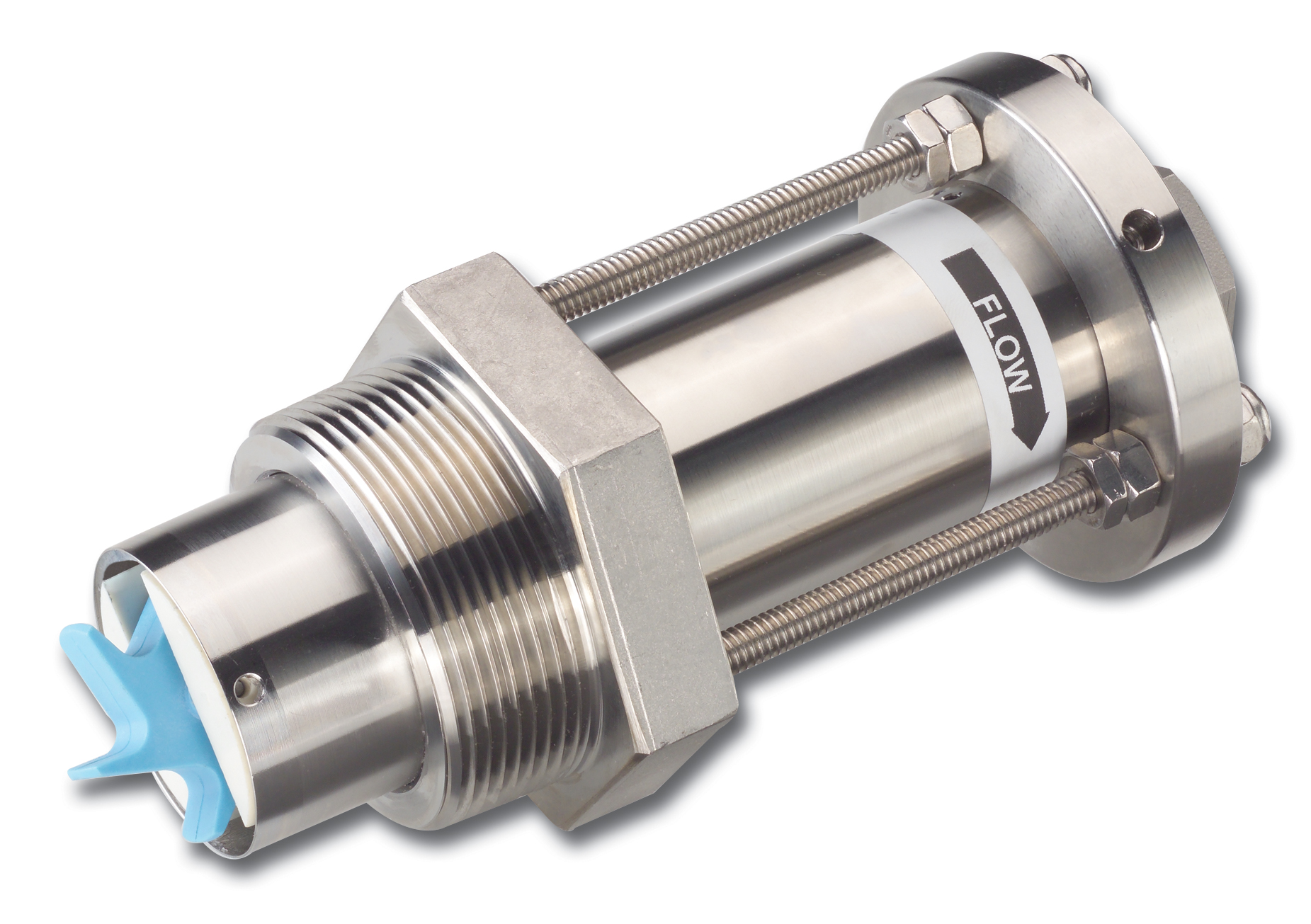

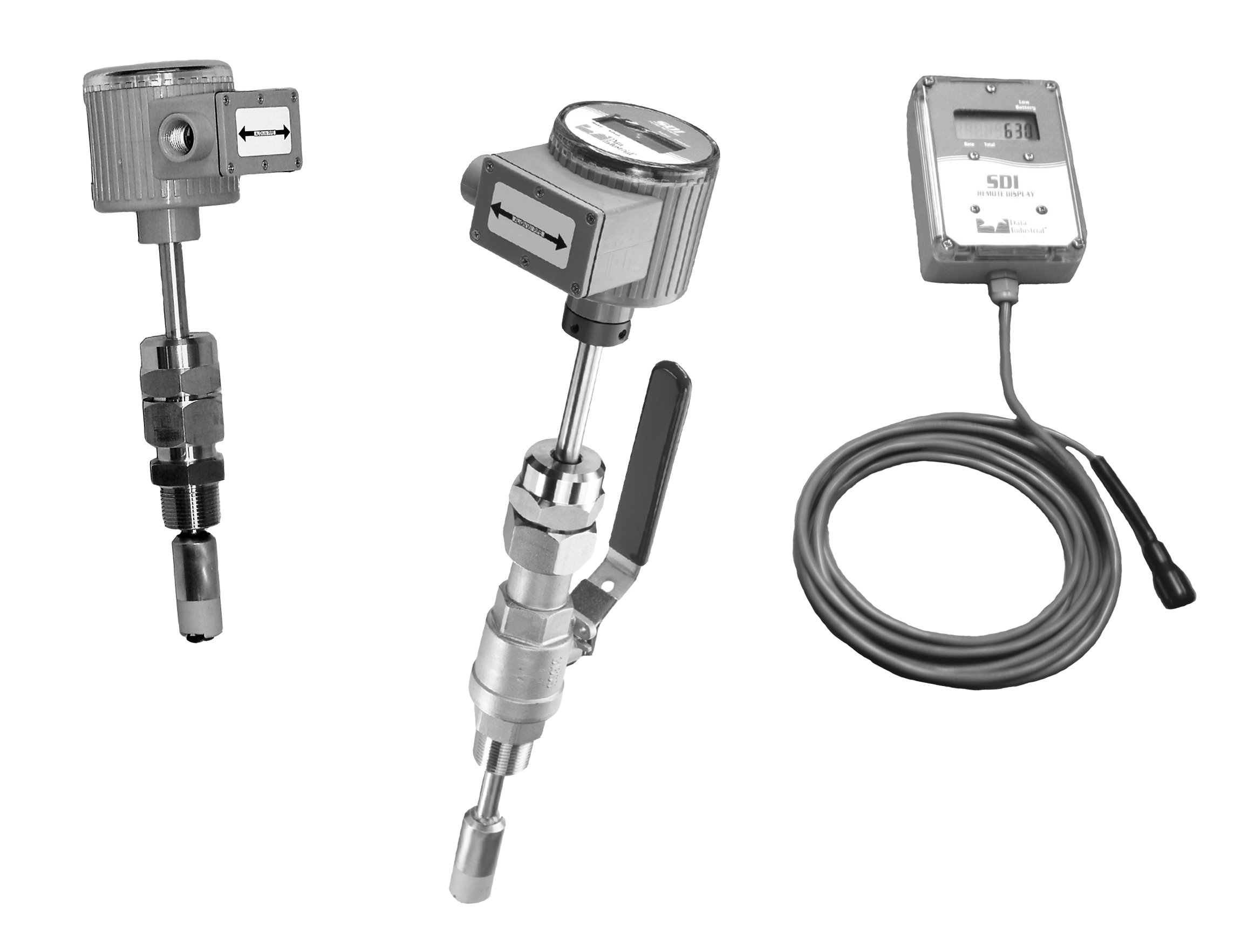

Series 200 Impeller Sensor         SDI Series Flowmeters         Wireless Systems



Burkert         Burkert PVC Flow         Burkert Insertion Mag         Burkert Mass Flow Controller

Burkert manufactures magnetic, paddle wheel, and oval gear flow meters for continuous measurement and batch control applications.

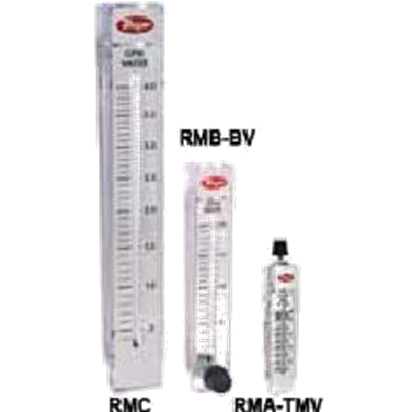

Dwyer Instruments                 Dwyer Roto Meter

Dwyer Instruments produces many different flow technology instruments for wide ranging applications. Styles include variable area (roto-meters), paddle wheel, turbine, paddle, manometers, and many more.



Sur-flo             Turbine Flow Meter     Meter Run

Sur-Flo Meters & Controls has thirty (30) years experience selling to the oil and gas industry the most “robust” products in the industry.

  • Turbine Flow Meter - Sur-Flo’s Turbine Meter has a unique paddle-wheel style rotor that operates smoothly with the toughest abrasives and foreign material long after the competitor turbine has required service. Excessive wear and binding from abrasives in the liquid do not occur with our turbine. The internal parts of the Sur-Flo Turbine Meter are composed of stainless and high speed steel for the long term capabilities. Along with HSN seals, we offer sweet and sour service combined in one unit. Our turbine meter can be repaired without removing it from the line, greatly reducing maintenance costs downtime and lost productivity.

  • Gas Meter Runs - The uniquely designed Roto-Boss gas meter run allows selection from five (5) plate sizes without gas flow interruption quickly and safely. Our system allows for simple rotation of plates to utilize a different size in approximately ten (10) seconds. A rotation shaft and locking mechanism is located on the face of the flange for easy access. Significant savings occur when the down time is removed and there is less handling of the orifice plates and all this occurs without shutting the line down. From a safety aspect, the Roto-Boss gas meter run enables the user to change plates without exposure to potentially harmful gases (sour) or pressure. The Roto-Boss gas meter run delivers consistent and accurate metering, safety and savings without downtime.
